NOMENCLATURE Worksheet

Draw the following organic molecules. (condensed, complete or ball and stick)





1.  3-Hexanone                                                      2.  Propanal                                             3. Methyl propyl ether





4.  Decanoic acid                                                 5.   3-Octyne                                            6. Propyl heptanoate





7.  3-Ethyl-4-methyl-1-pentyne                             8.  cis-2-Pentene                                     9. 4-Methyl octanal





10.  6-Ethyl-1,3,8-trimethylcyclooctane               11.  3-Nonanol                                        12. 2,2 Dimethyl hexanoic acid





13.   Ethyl methyl ether                                        14.  4 Ethyl-2-hexanol                              15. 2-Butanone





16.  Ethyl pentanoate                                            17. 1,4-Dibromo cyclopentane                 18. trans-4-Methyl 3-heptene











Name the following compounds.



19.               CH3-CH2-CH=CH-CH2-CH2-CH3                               20.              Image result for aldehyde                        21.









22.           Image result for branching alkyne                                                 23.              CH3-CH2-OH                              24. Image result for carboxylic acid









25.                                                    26. Image result for ester                            27.

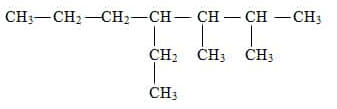

28. Image result for cycloalkane                                                              29. Image result for branching alkanes  30.











31.                                     32.                             33.









34. CH3-CH2-CH2-CH2-O-CH2-CH2-CH3                        35. Image result for ketone                                        36.









37.                                    38.
